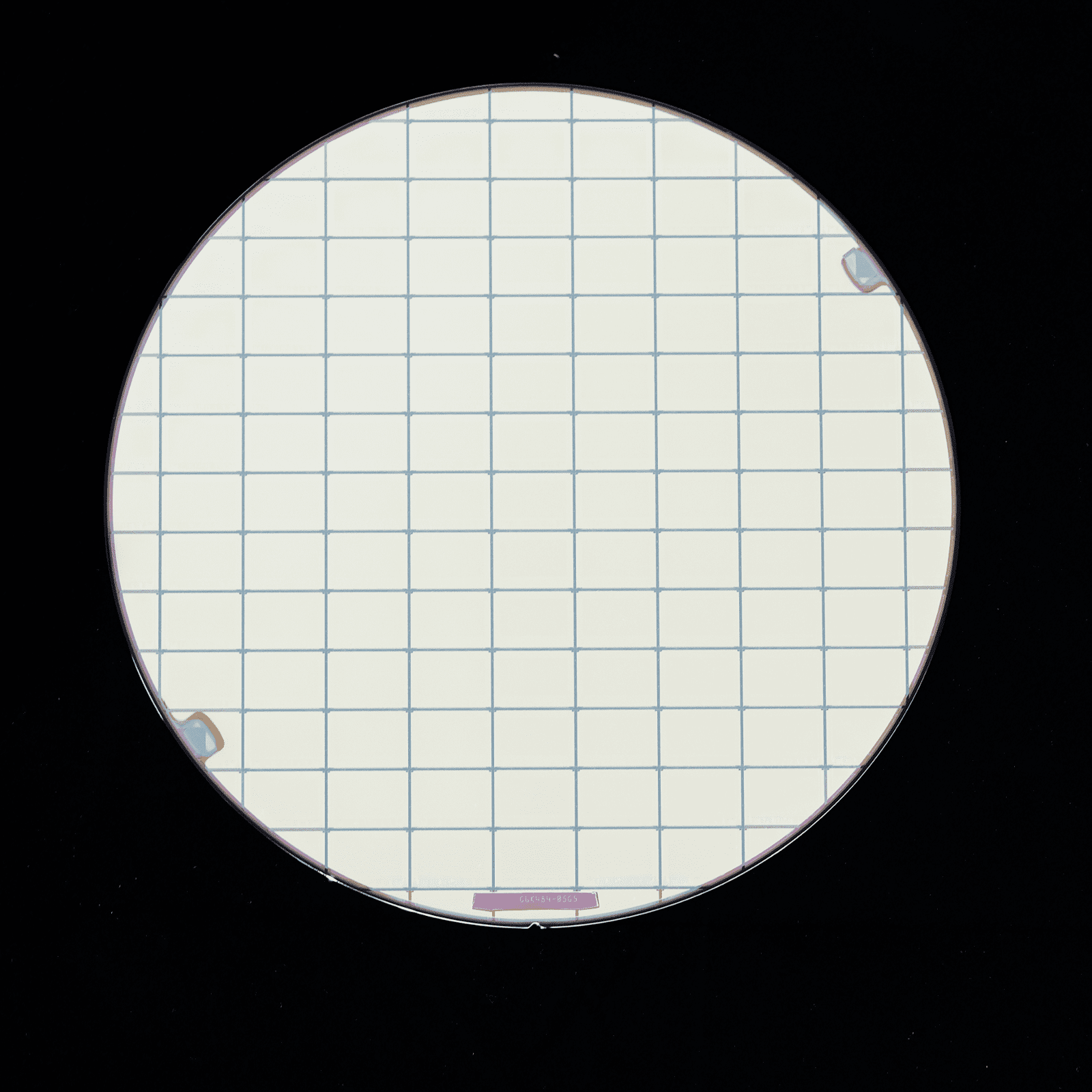

LX7021
LX7021 is an 0.7'' diagonal FHD (1920 X 1080) digital liquid crystal on silicon (LCoS) backplane wafer device.
LX7021 is embedded with a 1-bit frame buffer hence offering high resolution modulation and fast refresh rate, while the interface is operating at up to 32Gbit per second. The LC (liquid crystal) voltage can take up to 6V without long term damage.

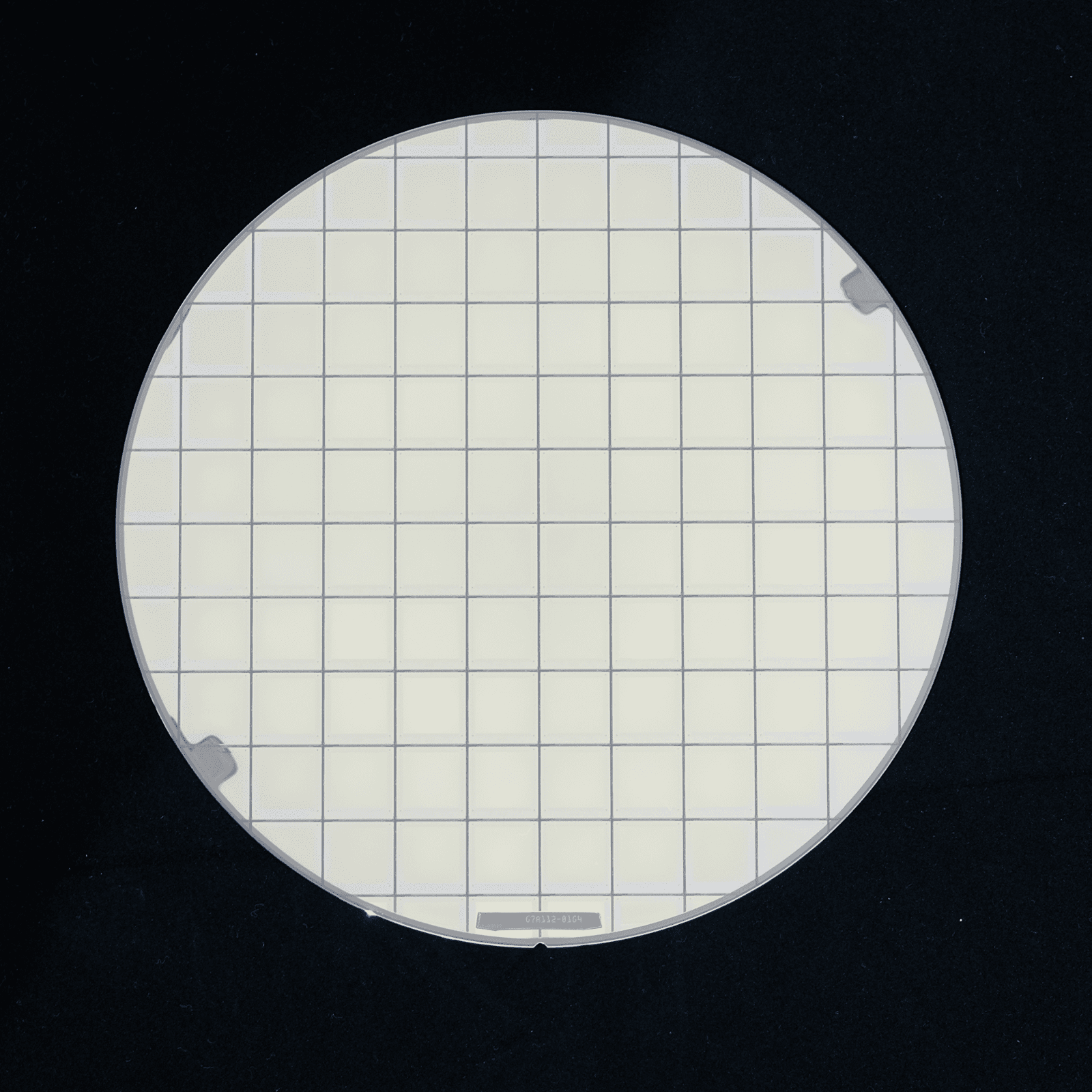

LX2000
LX2000 is an 0.73'' diagonal (with 2048 x 2048 pixels) digital liquid crystal on silicon (LCoS) Micro Display. The embedded 1-bit frame buffer, with random accessible row addressing/refreshing features, enables flexible and optimized pulse width modulation.
The digital IO interface is capable of operating at up to 32Gbit per second (package limited). The LC (liquid crystal) operates at 5V.
LX1142 (Preliminary)
LX1142 is a 1.1'' diagonal (with 4096 x 2048 pixels) digital liquid crystal on silicon (LCoS) Micro Display. The embedded 1-bit frame buffer, with random accessible row addressing/refresing features, enables flexible and optimized pulse width modulation.
The optimized digital IO interface is capable of operating at a high voltage range and up to 32Gbit per second. The LC (liquid crystal) operates at 5V.
